Storage Cage,Wire Mesh Container
Detailed Product Description: Storage Cage,Wire Mesh Container
Features:
1, Lattice structure, light weight, high strength. Products have been relatively light weight 30% and 40% increase in strength
2, Surface treatment: electro zinc plated after welding for rust-free life.
3, Assembly, folding sample, four-stack, improve space utilization
4, Unified specification, fixed capacity, storage at a glance, in favor of the inventory warehouse; Easy to operate, the use of a wide range of longer life expectancy.
5, The use of U-shaped steel reinforcement at the bottom to ensure that its carrying capacity;With moving equipment, can used for transport, handling loading and unloading, storage, logistics and other aspects of the custody.
6.Castors and pallets can be added to the base plate to make the movement of wire container easier.
2, Surface treatment: electro zinc plated after welding for rust-free life.
3, Assembly, folding sample, four-stack, improve space utilization
4, Unified specification, fixed capacity, storage at a glance, in favor of the inventory warehouse; Easy to operate, the use of a wide range of longer life expectancy.
5, The use of U-shaped steel reinforcement at the bottom to ensure that its carrying capacity;With moving equipment, can used for transport, handling loading and unloading, storage, logistics and other aspects of the custody.
6.Castors and pallets can be added to the base plate to make the movement of wire container easier.
Snaking wire containers are able to be conveyed by pallet vehicles, forklift, elevator and crane.Good stack ability. Stack ability: (in transport): 2-3; Stack ability (in warehouse):3-5.
Application Areas:
1.Logistic circles, such as transportation, assembly and disassembly, and storage, by integrating transportation equipments.
2. Wire containers are widely used in auto parts, machinery processing, electronic appliances, food industry, chemical industry Assembly and manufacturing plant production line product flow and inventory and other areas.
1.Logistic circles, such as transportation, assembly and disassembly, and storage, by integrating transportation equipments.
2. Wire containers are widely used in auto parts, machinery processing, electronic appliances, food industry, chemical industry Assembly and manufacturing plant production line product flow and inventory and other areas.
No.
|
A-3
|
A-5
|
A-7
|
B-5
|
B-7
|
B-9
|
B5-1/2
|
S-5
|
S-7
|
C-3
|
C-5
|
E-2
|
FS-7
|
Dia. mm
|
6.0
|
6.0
|
6.0
|
6.4
|
6.4
|
6.4
|
6.4
|
6.4
|
6.4
|
4.8
|
4.8
|
3.0
|
6.0
|
Mesh mm
|
50*50
|
50*100
|
50*50
|
50*100
|
25*50
|
50*50
|
25*25
|
100*100
|
|||||
L
|
800
|
1000
|
1200
|
1000
|
1200
|
1550
|
1000
|
1000
|
1200
|
800
|
1000
|
800
|
1200
|
W
|
600
|
800
|
1000
|
800
|
1000
|
1120
|
800
|
800
|
1000
|
500
|
800
|
500
|
1000
|
H
|
640
|
840
|
890
|
840
|
890
|
1000
|
500
|
840
|
890
|
540
|
840
|
540
|
890
|
Foot mm
|
100
|
100
|
|||||||||||
Weight(kg)
|
29
|
47
|
66
|
53
|
77
|
116
|
38
|
44
|
64
|
22
|
38
|
22
|
48
|
Volume
|
0.22
|
0.52
|
0.84
|
0.52
|
0.84
|
1.56
|
0.26
|
0.52
|
0.84
|
0.15
|
0.52
|
0.15
|
0.84
|
Load (kg)
|
800
|
1200
|
1500
|
1500
|
2000
|
2500
|
1000
|
1000
|
1000
|
500
|
500
|
500
|
100
|
Collapsible Mesh Storage Cage:
-Strong Versatile Storage Cage Ideal For Transport Or Warehousing
-Collapses In Seconds Without The Need For Any Tools
-Drop Down Self-locking Gate Provides Access Even When Stacked
-Load Capacity Of 2000kgs
-Stackable Up To 4 High In A Warehouse Environment Or 2 High In Transport Situations

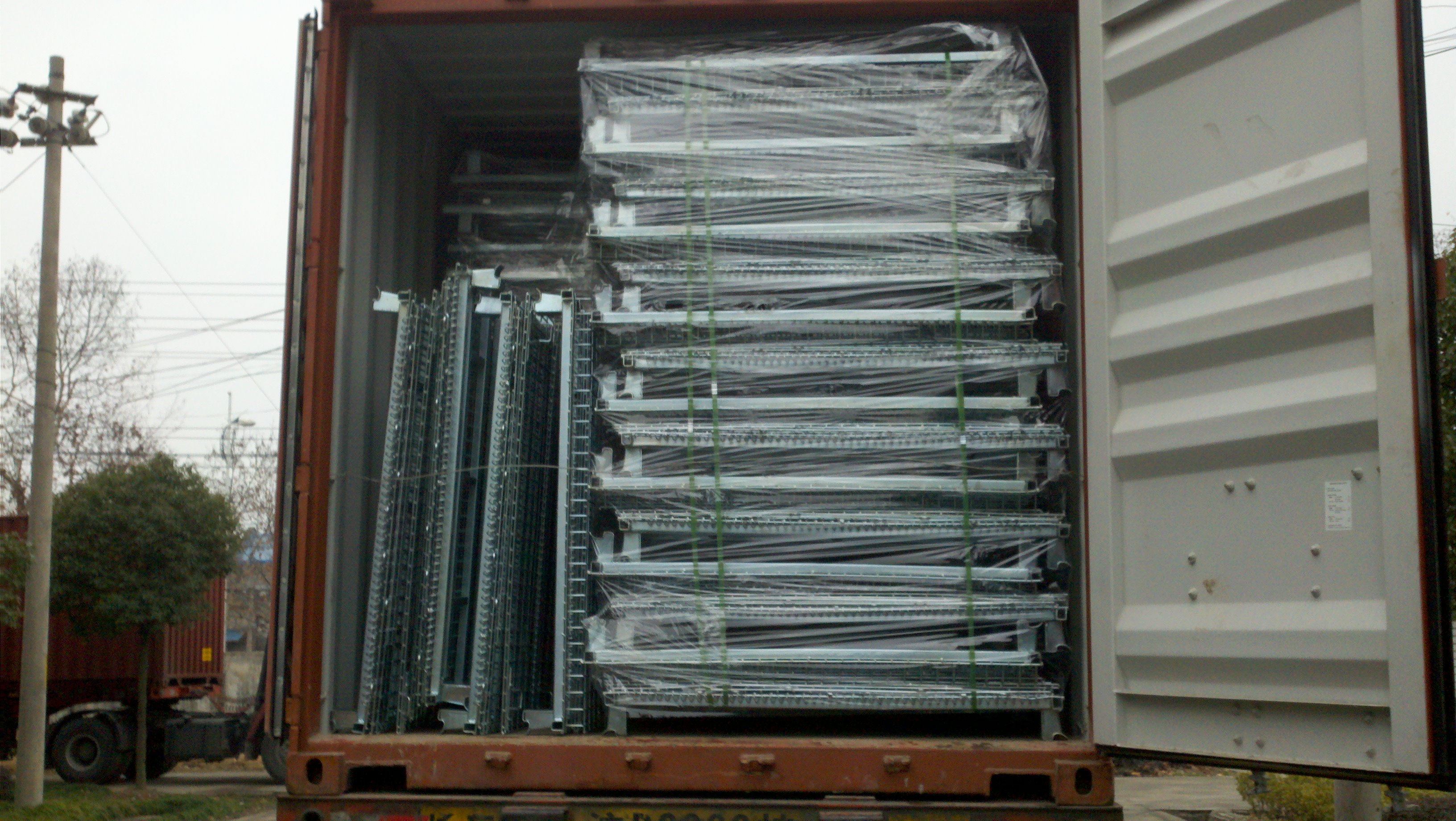

How many wire storage cages will fulfill each containers?
For example: total quantities of cage size L1200*W1000*H890mm will fulfill:
20ft: 140 pieces
40ft GP: 310 pieces
40ft HQ: 370 pieces
Mesh Pallet cage sizes can be customized.
